ZEBRA Z-BANDS — LEADING DURABILITY AND SCANNABILITY
Consistently Exceptional Quality
A barcode that fails to scan jeopardizes patient safety and staff productivity. That’s why we design, produce and rigorously pre-test our own line of Z-Band direct thermal wristbands. You get optimum image durability and scanning performance — ensuring first-scan readability even for narrow barcodes.
Up to Six Times More Durable Than Other Wristbands
Barcodes on Z-Band wristbands are proven to withstand water, soap, foams, alcohol and other common solvents found in healthcare. Independent laboratory testing showed that Z-Bands were two to six times more durable than leading competitors after repeated exposure to common hand sanitizers.¹ And that Z-Band barcodes will remain scannable for longer than the average patient stay.
Wide Range of Wristband Colors and Sizes

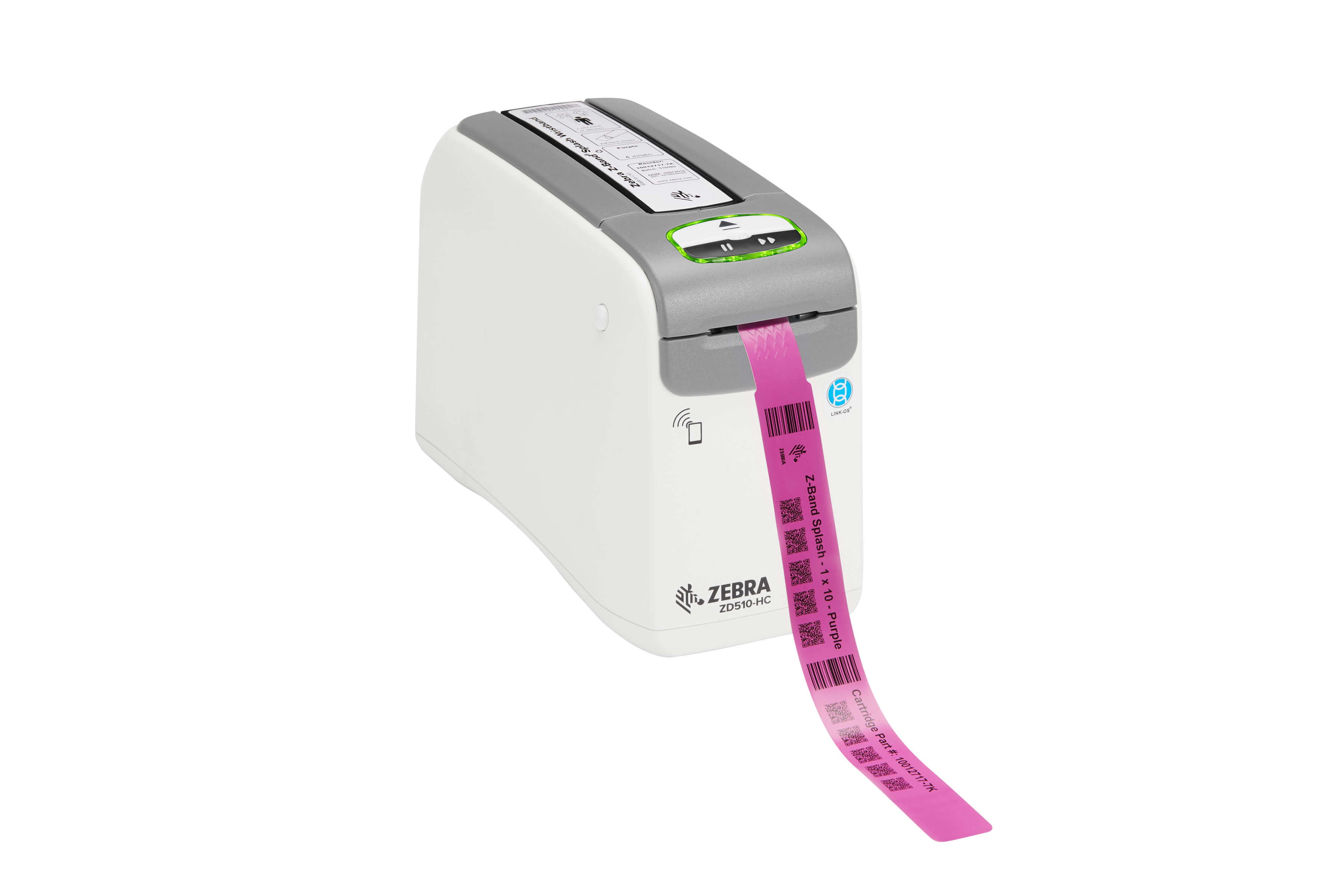

The ZD510-HC accommodates Zebra’s entire line of white and color Z-Band wristbands. Z-Bands are available in a variety of sizes, from infant to adult, with both adhesive or clip closures. Z-Bands are resistant to hand sanitizers and are non-irritating. You can ensure the comfort of patients with the most sensitive skin with Z-Band UltraSoft, one of the softest wristbands in the market. And Z-Bands have been determined to be MR-Safe and do not appear to present an additional hazard to patients undergoing MRI procedures.
DESIGNED TO IMPROVE SAFETY AND DATA SECURITY
Easy to Clean and Sanitize
The ZD510-HC printer’s disinfectant-ready UV-resistant housing is designed to handle regular sanitizing with harsh chemicals and UV light, helping to increase patient safety.
Medical Grade Power Supply
The ZD510-HC’s power supply is IEC 60601-1 compliant for use in healthcare facilities.
Secure solution for HIPAA compliance
The ZD510-HC’s Direct Thermal printing technology simplifies HIPAA compliance — there’s no ribbon to secure, incinerate or shred. Advanced security and management features to help secure patient data.
Quiet Operation
The ZD510-HC’s quiet operation won’t disturb patients and other healthcare professionals.
COMPREHENSIVE REMOTE MANAGEMENT OPTIONS
Zebra Print DNA — Transforming Printers From the Inside
The ZD510-HC is powered by Link-OS, Zebra’s robust printer operating system, and Print DNA, a combination of productivity, management, development and visibility tools. The result is a superior printing experience through better performance, simplified remote manageability and easier integration. DNA option, you can manage one printer, a group of specific printers or all printers anywhere in the world. This browser-based solution lets you instantly discover every Link-OS printer on your network — there’s no need to manually track down, configure or troubleshoot printers.
Flexible and Simple Configuration and Management Tools
In addition to optional enterprise remote management tools, we offer a full suite of complimentary management and deployment utilities. Initial setup and configuration is simple with Zebra’s free printer setup utilities. Support for Bluetooth Low Energy allows administrators to wirelessly connect their mobile device, computer or laptop to the printer — no need for ‘direct-connect’ cables or network access.
Protect Sensitive Patient Data with PrintSecure
This complimentary Print DNA utility makes it easy to configure over 30 settings to fine-tune printer security to protect your data and your infrastructure by creating secure printer connections and blocking unauthorized printer access.
Seamless Integration with Your Device Management System
Get the simplicity of a single-pane-of-glass to manage all your Zebra mobile devices and printers — including the ZD510-HC. With Print DNA’s MDM Connectors, you can easily integrate networked ZD510- HC printers into your existing AirWatch or SOTI MobiControl device management system.
Maximize Uptime and Printer Visibility with Services
Ensure predictable performance and eliminate unbudgeted repair expenses with Zebra OneCare. You get unmatched technical support direct from Zebra, as well as comprehensive repair services, including accidental damage and defined repair turn-around times. And Zebra’s Visibility Services provide the real-time insight into printer operational information you need to increase printer availability and optimize utilization within your workflows.
SPECIFICATIONS
Standard Features
|
• Quick and easy wristband cartridge loading • Automatic print speed setting-up to 4 ips depending on installed cartridge • Direct thermal printing of barcodes, text and graphics • Dual-wall frame, impact-resistant plastic • ZPL® or ZPL II® programming language • 512 MB Flash memory • 256 MB SDRAM memory • Element Energy Equalizer™ (E3™) for superior print quality • Connectivity: USB Host, USB, Ethernet, Bluetooth Low Energy • Odometer for print-length tracking • Illuminated media low/media out indicator • Tool-less printhead and platen replacement • Unicode™-compliant for multi-language printing • Instant media calibration — no wasted media • Head-up sensor • XML-enabled printing — allows XML communications from information systems • ENERGY STAR® qualified • Link-OS • Real Time Clock • Two-year standard warranty |
Physical Characteristics
| Dimensions |
5 in. W x 7 in. H* x 9.5 in. D 127 mm W x 178 mm H* x 242 mm D * Requires 6 in./153 mm clearance above printer to load cartridge |
Printer Specifications
| Maximum Print Length | 22 in./558 mm |
| Minimum Print Length | 3 in./76 mm |
| Print Widths | 0.75 in./19.05 mm, 1 in./25.4 mm, 1.1875 in./30.16 mm |
| Resolution | 300 dpi/12 dots per mm |
| Maximum Print Speed |
Healthcare: 2 in./51 mm per second Z-Band Fun and Z-Band Splash: 4 in./102 mm per second |
Media Characteristics
| Zebra offers a comprehensive range of wristband solutions for healthcare and hospitality industries. | |
| Healthcare Wristbands |
|
| Hospitality Wristbands |
|
Environmental (Printer)
| Operating Temperature | 40° F to 104° F /4.4° C to 40° C |
| Storage Temperature | -40° F to 140° F /-40° C to 60° C |
| Operating Humidity | 20%-85% non-condensing R.H. |
| Storage Humidity | 5%-85% non-condensing R.H. |
Cleaning (Printer)
| Healthcare wipeable plastic is designed to withstand a variety of disinfectants, chemicals and cleaning solutions. |
Environmental (Wristband Cartridge)
| Service Temperature | -40° F to 140° F/-40° C to 60° C |
| Storage Temperature | 32° F to 70°F/0° C to 21° C at 35% to 50% non-condensing R.H. |
Electrical
|
Agency Approvals
| Emissions | FCC Part 15, Subpart B, VCCI, RCM |
|
Emissions and Susceptibility |
(CE): EN 55032:2012 class B and EN 55024:2010, EN 61000-3-2, EN 61000-3-3, CISPR 32:2015 |
| Safety | CB Scheme IEC 60950-1 and IEC 62368-1, TÜV, NRTL |
| Power Supply | IEC 60601-1:2012 |
Options And Accessories
|
